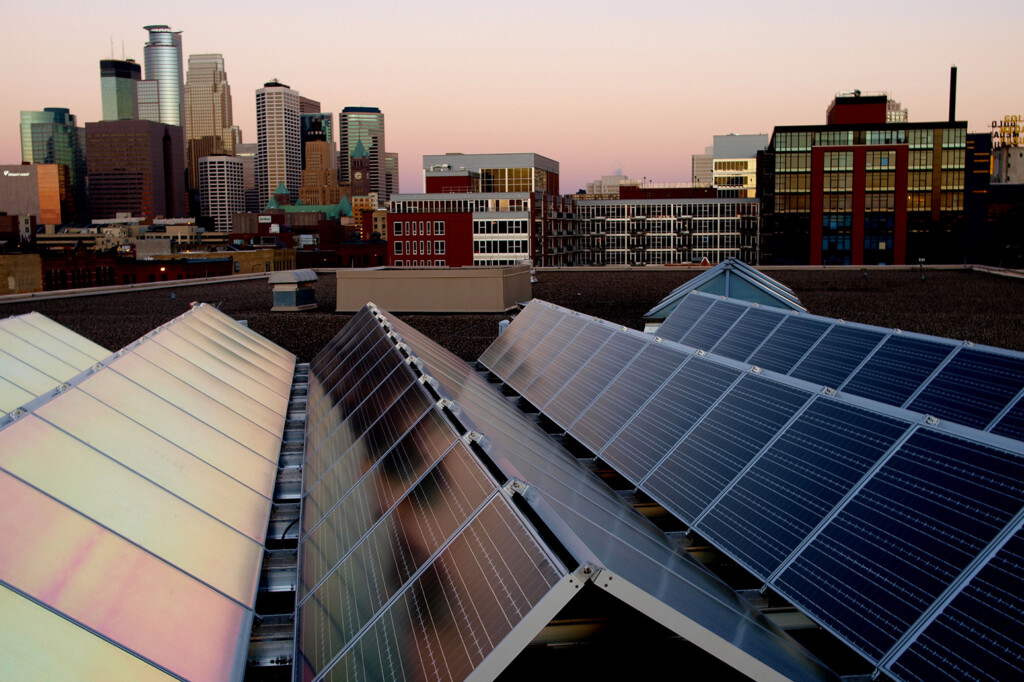

Solar panels on rooftops, Minneapolis
RENEWABLES
6 December 2016 16:49

Solar panels have been benefitting the climate ‘since 2011’

Sophie Yeo

Sophie Yeo

12.06.16
Sophie Yeo

Sophie Yeo

06.12.2016 | 4:49pm
RenewablesSolar panels have been benefitting the climate ‘since 2011’

In 2011, solar power reached a tipping point. This was the year when the solar industry had saved more greenhouse gases than it emitted.

This is the best estimate of a new paper published today in the journal Nature Communications, which addresses questions around the sustainability of solar panels by comparing the amount of CO2 emitted during production to the amount saved once in use.

Production emissions

Solar power capacity has grown quickly globally over the past 40 years. Cumulative capacity grew from less than one megawatt (MW) in 1975 to around 180 gigawatts (GW) by the end of 2014, the study says. That is an increase of around 45% year-on-year.

This growth rate is celebrated as a sign of a thriving industry and as a boon in the fight against climate change. This is because solar panels generate carbon-free, renewable power.

However, producing the panels requires energy. Since this energy largely comes from fossil fuels, greenhouse gases are emitted during panel production.

Individual solar panels displace more dirty energy over their lifetime than was consumed during their production. But for the industry as a whole, rapid growth means initial production emissions may have outweighed the savings from using solar instead of coal or gas.

It is only when these savings start to outweigh CO2 released during production that the solar industry contributes to mitigating climate change. The paper published today investigates when this break-even point occurs.

Method

To work out the extent of this issue, the study looked at various elements of the solar industry over a period 40 years, from 1975 to 2015, including its growth, improvements in efficiency, and cumulative energy demand and greenhouse gas emissions.

Measuring cumulative installed capacity meant creating a dataset that is an “aggregate of more and less accurate data” from various suppliers and countries, the study says.

The greenhouse gas emissions produced and displaced by the solar industry depends on where the solar panels are made and used — some countries have more polluting power grids than others, depending on the source of electricity. For instance, countries that source a larger proportion of their power from coal will have a more carbon-intensive grid.

To take this into account, the researchers used the average carbon intensity of the grid in producing countries to measure emissions, and the average of all grids to measure the emissions displaced.

This could lead to a conservative result, the study admits. In real life, new solar capacity is more likely to replace older, fossil fueled plants as they are decommissioned, which would mainly use coal.

The study specifically looked at two types of solar panel — monocrystalline- and polycrystalline-based systems — as these account for 90% of installed capacity.

Findings

The scientists found that, from 1975 up to 2011, solar panels were actually a source of greenhouse gases globally. The emissions avoided by existing solar panels were insufficient to offset the amount of emissions that had ever been produced by the rapid production of new solar panels.

But in 2011, this flipped. Instead of being a net source of emissions, the solar industry started avoiding more emissions than it emitted, providing a net climate benefit.

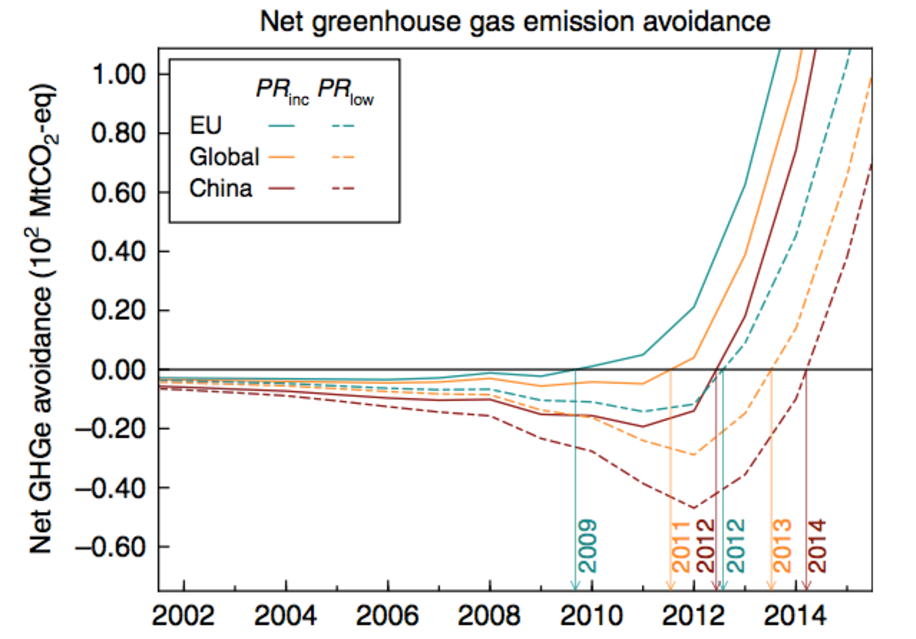

Cumulative net greenhouse gas avoidance of solar panels

Cumulative net greenhouse gas avoidance of solar panels globally, in the EU, and in China. PR stands for performance ratio. Solar panels are assumed to be better quality in the PRinc scenario than in the PRlow scenario. Source: Reassessment of net energy production and greenhouse gas emissions avoidance after 40 years of photovoltaics development.

Atse Louwen, a researcher at Utrecht University and co-author of the study, tells Carbon Brief:

“What we show is that although current rates of installed PV [photovoltaic] capacity growth are quite high, the industry as a whole is a net negative carbon emitter and will be so from now on, if growth rates do not increase drastically.”

This “most probably” means that any progress in limiting global emissions growth before 2011 was not a result of the increase in solar, co-author Wilfried van Sark, associate professor at Utrecht University, tells Carbon Brief.

One element that allowed the tipping point to occur is the increasing efficiency of solar panel production, the study says.

For every doubling of installed solar capacity, there is a decrease in greenhouse gas footprint of 17% (polycrystalline) and 24% (monocrystalline). This means that individual solar panels will take less time to displace the emissions from their production. Louwen adds:

“Since the payback times are decreasing over time, we have now reached the point that even at this strong growth, the total installed PV capacity is a net producer of energy and a net GHG sink.”

The 2011 date depends on “realistic” assumptions about the performance of solar panels and also where production will take place over time — each country’s energy mix has a different carbon intensity and will, therefore, affect the footprint of solar panel production.

In a worst-case scenario for solar performance, the break-even point occurs in 2018. In a best-case scenario, it could have occurred as early as 2001.

Graph: cumulative net greenhouse gas avoidance of solar panels globally

Cumulative net greenhouse gas avoidance of solar panels globally, where the solid lines represent the mean result, and the bands show confidence of 95% around the mean. Source: Reassessment of net energy production and greenhouse gas emissions avoidance after 40 years of photovoltaics development.

These break-even points are for the solar power industry globally. At a regional level, this moment could have occurred sooner or later than 2011, as the first graph shows. In the EU, it could have taken place as early as 2009, whereas in China it could have been in 2012. These years are pushed back when solar panels are assumed to be less efficient.

Chris Goodall, the author of books such as The Switch and Ten Technologies to Fix Energy and Climate who blogs about low-carbon energy at Carbon Commentary, tells Carbon Brief:

“This Nature paper should not be interpreted to mean that solar PV creates an ‘energy debt’ because manufacturing silicon is so energy intensive. The study actually says that PV has been growing so fast — 45% a year over the last several decades — that until 2011 the annual amount of energy consumed to make new solar panels exceeded the electricity produced by all the existing panels in the field. This is simply a matter of arithmetic reflecting the exponential growth in solar. Focus also on the second piece of good news coming out of the paper. The study tells us a solar module will now only take about a year to generate more electricity than was used in its manufacture. That’s a one-year energy payback, down from double this in 2011. And since solar panels now last 35 years, PV now saves 34 years of emissions that would have come from gas or coal.”
