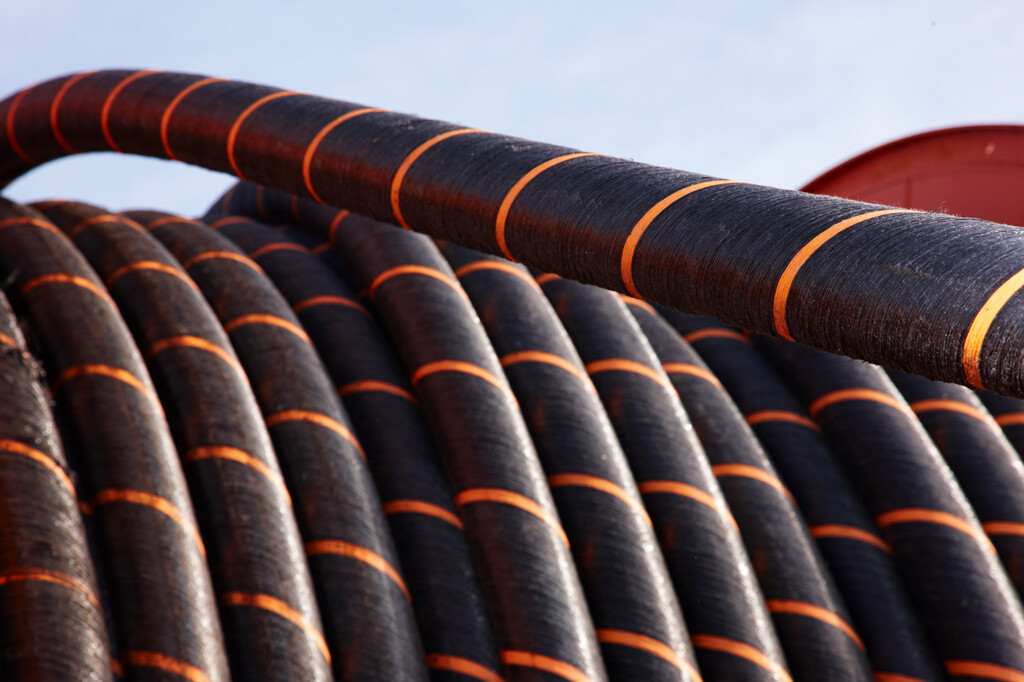

The BritNed cable on its reel, that forms the interconnector between the UK and the Netherlands
The BritNed interconnector cable on its reel. Credit: BritNed.
RENEWABLES
22 February 2017 8:00

In-depth: The whole system costs of renewables

Simon Evans

Simon Evans

02.22.17
Simon Evans

Simon Evans

22.02.2017 | 8:00am
RenewablesIn-depth: The whole system costs of renewables

Dramatic cost reductions mean wind and solar can now compete on price with conventional sources of energy in many parts of the world, including the UK.

This turns the spotlight onto the so-called “whole system costs” of integrating renewables into the electricity system, which include backing up intermittent generation and strengthening grids. In a report published this week, the UK Energy Research Centre (UKERC) reviews the latest evidence, finding that these costs are “modest” – probably of the order of £10 per megawatt hour (MWh), even if wind and solar double their output from today.

But the UK needs to keep investing and upgrading its electricity grid, regardless of the mix of generating technologies. A more flexible grid would help secure electricity supplies and keep the integration costs of renewables to a minimum, offering savings of up to £8bn per year by 2030.

Carbon Brief explores the debate and the evidence around whole system costs.

Background

The UKERC review updates a similar study from 2006, which found integration costs for wind and solar would be around £5-8 per megawatt hour (MWh). The new review draws on evidence from around 200 reports containing thousands of data points from around the world.

Summing up the changes over the past decade, Dr Rob Gross, UKERC director, told a press briefing in London:

“In 2006, the cost of generating electricity with renewables was expensive, but the costs of providing flexibility were trivial. What we’re saying now is the cost of making electricity with renewables is coming down, but if you want to have a very large amount of renewables in the system, then the costs of providing flexibility will potentially become quite significant.”

Indeed, the latest UK evidence collected for government shows onshore wind and solar are already competitive with gas. By 2025, the evidence shows they will be the cheapest sources of electricity generation in terms of price per MWh. (Note that this comparison includes CO2 pricing).

Wind and solar may be getting cheaper, but critics say these prices exclude costs imposed on the electricity system as a whole. Others say each electricity generating technology offers a range of different services to the grid, that cannot be valued in price per MWh alone.

In Autumn 2014, the government responded by commissioning a series of studies to investigate the whole-system costs of renewables.

The three-phase project was later touted in a Mail on Sunday article, which quoted a “senior energy source” saying: “It may well turn out that certain kinds of renewable energy are not quite as cheap as we thought.”

The first part of this research, carried out by Frontier Economics, was completed many months ago. In July 2016, ministers told parliament it would be published “in due course”. They said the same in, November and December 2016.

Despite efforts to force publication, however, none of the findings have ever emerged, with some renewable supporters suggesting this is because they will show that integration costs are low. Meanwhile, high estimates of system costs are routinely cited by those who oppose climate policy.

Integration costs

There are a variety of ways renewables can impose costs on the system, from the need to back up intermittent supply to strengthening grids. The UKERC review lists six categories of impact. It also emphasises that costs under each heading overlap, so that they cannot simply be added up.

Before we look at each category in turn, it’s worth adding that cost estimates vary widely. Gross tells Carbon Brief: “How much it will cost to integrate renewables into a power system depends entirely on how flexible that system is, and it also depends on geographical factors.”

The report says costs estimates are typically “dramatically lower for flexible systems”. Gross adds:

“One of the most important messages from our report is that there’s no single answer to how much does it cost to integrate renewables…The most important thing that policymakers should be thinking about in the energy domain is how to make systems that are smart and flexible and that can take advantage of the low-cost resource that’s available from renewables, and integrate them into the system in a cost-effective way.”

The first way renewables can add to system costs is by raising reserve requirements. Grid operators already need to hold flexible generators in reserve, in case conventional power stations break down without warning.

Short-term fluctuations in the output of wind and solar can mean more reserve is needed. The UKERC review says this could add up to £5/MWh, if wind and solar supply 30% of electricity demand. Note that this is twice today’s levels: wind and solar covered 14.5% of UK power in 2016.

At 50% penetration, costs could rise to between £15 and £45/MWh, with the top end reflecting a very inflexible electricity system. Gross says the high costs for inflexible grids show “what not to do” when planning future electricity systems.

UK short-term reserves have already expanded to cater for large offshore windfarms. Intriguingly, this means they are now also sufficient to cater for breakdowns at the planned Hinkley C new nuclear plant, showing how difficult it is to pin system costs on individual projects or technologies.

The second category of costs listed by UKERC is maintaining enough capacity to meet peak demand at all times. These are around £4-7/MWh at 30% penetration, it says. They will rise to no more than £15, it adds, even if wind and solar supply half our electricity, yet contribute nothing at all to meeting peak demand.

The third area of costs comes from strengthening electricity transmission networks. The grid already needs a rolling programme of renewal and expansion. As solar and wind expand, the additional cost could be £5-20/MWh and, again, the top end relates to inflexible grids.

Expanding electricity networks – for example, by building interconnectors to other countries – brings benefits to the whole system, UKERC notes. This means it is “misleading” to allocate the full costs to renewables.

A related area of costs is curtailment, where windfarm output is wasted because there is not enough grid capacity to get the power to customers. Curtailment is “generally very low”, UKERC says. Investments in electricity grids can reduce it further, while raising network costs. Again, this shows how system costs can overlap or trade off against each other.

The fifth type of system cost relates to the efficiency of conventional power stations, which can be impaired if they have to turn on and off in response to variable renewable generation instead of operating steadily. UKERC says the majority of studies finds this impact to be “very small”.

Finally, the increase in renewables and reduction in fossil fuel plant changes the resilience of the electricity system by reducing a quality called inertia, which traditionally stems from the spinning mass of steam-driven turbines. Costly changes in system inertia are only likely to become significant when wind and solar pass 50% grid penetration, UKERC says.

Whole system approach

The overlaps between different types of system costs mean these category-by-category cost estimates “cannot be simply added together to determine the total systems costs”, UKERC says.

As Gross explains: “Many of us would like to say that the answer is six or the answer is 11. Unfortunately, it’s a little bit more complicated than that.”

Gross and his co-author, Phil Heptonstall, a UKERC research fellow, tell Carbon Brief that at 30% penetration for wind and solar – roughly double today’s level – the total for the two most significant categories of system cost amounts to around £10/MWh. Heptonstall tells Carbon Brief:

“This excludes outliers, either because they assume an all [solar] PV scenario and/or they use an approach which has come under substantial criticism. It also excludes transmission and network reinforcement costs on the basis that such reinforcements confer benefits on the whole system, not just variable renewables. It is a simplification, but in our view, not an unreasonable one.”

A more reliable way to estimate whole system costs, UKERC says, is to take a whole systems approach. This means creating a model to simulate the electricity system, then comparing versions with and without high levels of wind and solar.

Hugo Batten, senior project leader at consultancy Aurora Energy Research, tells Carbon Brief it simply isn’t possible to get accurate system integration cost estimates without modelling the different electricity markets down to half hourly resolution.

If you’re not doing that, Batten says, “I would take [the] results with a pinch of salt”. There are already a number of published studies that use a whole systems approach, several of which were included in the UKERC review. Their findings are similar to Gross and Heptonstall’s simplified estimate of around £10/MWh.

In a medium flexibility electricity system, total integration costs for wind and solar would average between £10 and £14/MWh during the 2020s, according to one study from NERA Economic Consulting commissioned by power station Drax.

In a report commissioned by the Solar Trade Association, Aurora found solar integration costs would reach no more than £7/MWh. This estimate assumes solar capacity increases from today’s 11 gigawatts (GW) to 40GW in 2030. If battery costs fall faster than expected, solar integration could be a net benefit to the electricity system (see chart, below).

Estimated system integration costs for solar power in the UK. Source: Aurora Energy Research.

Estimated system integration costs for solar power in the UK. Source: Aurora Energy Research.

Another whole system study, from Imperial College on behalf of several energy firms, finds integration costs in 2030 ranging from £6 to £48/MWh. This range is capped at no more than £17/MWh, as long as the system includes a small amount of additional flexibility compared to today’s levels (see chart).

Estimate 2030 system integration costs for offshore wind (left), onshore wind (centre) and solar (right). No flex reflects today's situation. Low/mid flex add 5/10GW of new storage and 6/7GW of new interconnectors. CAPEX refers to capital costs for generation (G), local distribution networks (D) and regional transmission networks (T). OCGT and CCGT are open cycle and combined cycle gas turbines respectively. CCS is carbon capture and storage. Source: Imperial College.

Estimate 2030 system integration costs for offshore wind (left), onshore wind (centre) and solar (right). No flex reflects today’s situation. Low/mid flex add 5/10GW of new storage and 6/7GW of new interconnectors. CAPEX refers to capital costs for generation (G), local distribution networks (D) and regional transmission networks (T). OCGT and CCGT are open cycle and combined cycle gas turbines respectively. CCS is carbon capture and storage. Source: Imperial College.

Earlier work from Imperial, carried out for the Committee on Climate Change (CCC), found system integration costs in 2030 of between £6 and £9/MWh, if the electricity sector makes its recommended contribution to the UK meeting climate targets.

Conclusion

The idea that wind and solar impose significant, hidden costs on the electricity system has become a staple of (at least some parts of) the political debate in the UK. The topic is ripe for exploitation, given its complexity and the very wide range of estimates for integration costs.

UKERC’s review is an attempt to summarise all of the evidence on the costs of intermittency. Its main message is that costs can be minimised if system flexibility is increased. Ministers recognise the need to modernise the electricity system and are seeking views on how to go about this.

This review is also an opportunity to recognise that the base cost of generation, per MWh, is a limited way to measure usefulness to the electricity system.

There is a growing movement among energy system experts to shift away from levelised costs per MWh towards attempts to value the time, location and flexibility of generation. Frontier Economics, the authors of the government’s long-awaited system costs review, also line up behind this idea.

In a brief report on the issue, Frontier backs a nuanced approach to system costs, based around reforms of the electricity markets and policies, such as the capacity market. It says:

“While it’s tempting to believe that these forgotten costs can be incorporated into existing support schemes through the judicious use of simple technology uplifts or penalties, this isn’t the best approach, not least because the necessary adjustments will prove very difficult (and controversial) to calculate.

“Rather than trying to solve these problems through low-carbon support mechanisms, policy makers should focus on revising their market and charging frameworks to make all actors – conventional and low-carbon alike – better accountable for their whole system impacts.”

Still, if integration costs add somewhere in the order of £10/MWh to renewable costs, as the UKERC review authors tell Carbon Brief it is reasonable to assume, then onshore wind and solar will remain among the cheapest ways to generate power in the 2020s.

Sharelines from this story
  • In-depth: The whole-system costs of renewables
  • GeoffBeacon

    I wish official sources of information were more transparent. Your report makes me very depressed

    Despite efforts to force publication, however, none of the findings have ever emerged, with some renewable supporters suggesting this is because they will show that integration costs are low. Meanwhile, high estimates of system costs are routinely cited by those who oppose climate policy

    The lack of integration of various sources of information also depresses me. I don’t know how seriously to take the work of the Landslide-Tsunami Consortium when they ask Will climate change in the Arctic increase the landslide-tsunami risk to the UK? but I doubt it’s factored into the reports mentioned above. Nor will the dangers to coastal nuclear power stations – like Fukushima or the UK’s coastal nuclear power stations.

    I’m no expert but I sent a note to Dr Mike Weightman in 2011, then Chief Inspector of nuclear installations and head of the Office for Nuclear Regulation about this issue. It still doesn’t seem to be properly integrated into decision making. Since then we have had James Hansen raising the possibility of super storms with enormous waves, adding to sea level rise.

    Those keen on nuclear power, should perhaps consider the mini nuclear power stations that need not be put in the path of tsunamis and super storms.

    But this is just one part of the siloed thinking in government today.

  • TheDudeofVoo

    Consider a small community, as if it was on an island (with no electrical connection to other communities). For simplicity, let’s say this community has one fossil fuel power generation facility, and it supplies the electrical needs of the community. The costs of the generation facility are paid for by the community in their electricity bills. Let’s say that the facility has three generators … any one of the three is capable of suppling the community’s needs. One can be set aside for maintenance, one is always on-line for meeting the demand, and the third is on stand-by in case of unexpected problems.

    The existing power facility has costs. These are in two categories: fixed costs, like the building, the land, the equipment, probably through a bank loan, are monthly bills that don’t vary … plus, variable costs that change each month, depending upon the electrical demand of the community, such as the costs of the fuel burned, the costs of the personnel who run the machinery. The staffing costs are simplified … two personnel perform maintenance on the idle generator, ten people run the operating generator, and two people keep the stand-by generator. When the running generator has problems, the ten people switch over to the standby generator, and the other two people also switch, and they do troubleshooting to fix the broken generator. Fourteen people. Let’s say this community has a not-for-profit cooperative, and every member of the community who uses electricity, pays just what it costs for the electricity. Natural gas is pretty cheap, so each consumer pays about $5 for the fuel, and $95 for the other variable and fixed costs of the power plant.

    Next, say, the environmentalists of the community want to add in wind power generation … for round numbers, say, the wind generation capability is up to 50% of the electrical demand. Let’s even say that the costs of the wind power, the land, construction, materials and all, are paid for by some investors, who agree to charge for the wind-generation at the same rate as the fossil-fuel cooperative. Let’s see what that does to the price of electricity. The typical person pays $100 per month in the electric bill.

    The free wind generators don’t require people at all.

    So, when the wind blows, the existing fossil-fueled facility cuts back on generation, and saves money on fuel costs. In reality, however, fuel costs are low … the typical person of the community pays $5 for the fuel costs. Most of the money is spent on personnel, land and equipment costs. The three generators still operate in the same sequence; one is down for maintenance, the other is on standby in case of problems, and the third meets the needs of the community, though, instead of running up to 100%, the wind, sometimes, provides up to half of the power … but, sometimes the wind quits. The fourteen people are just as busy, in fact, more so. They are now constantly adjusting the on-line generator to compliment the wind. These frequent adjustments reduce the efficiency of the generator, so, the generator consumes a bit more fuel; when the wind blows strongly, the inefficient use of fuel is small, compared to the savings of the free wind power, but when the wind is weaker, at some point, the fuel costs, due to the added inefficiency of constant adjustments to match the wind, actually costs more. Say, for example, the wind generation averages out to 20%.

    So the fuel costs of the fossil fuel generation facility goes down about 20%. The revenue earned by the facility goes down a full 20%. The windmill investors get about $20 per month from the community members, and the power plant now gets $80 (down from $100) per typical consumer. Previously, the typical consumer’s electric bill had a $5 portion for the fuel costs… now that is $4, 20% less. The typical consumer pays, in total, about $99, and the power plant cooperative, has a loss… Revenues are down 20%, but costs came down 1%. That is a 19% shortfall. Being a cooperative, they tell the consumers that the price will go up roughly 24%. The $80 monthly bill to the power plant is now $99.20.

    However, the investors swoop in, because he price went up… Now, the investors walk away with $24.80 per month from each consumer. The total electric bill paid by the consumer is $124 while it used to be $100, and the added wind generation was free, agreed upon at the same price to the consumer.
